About This

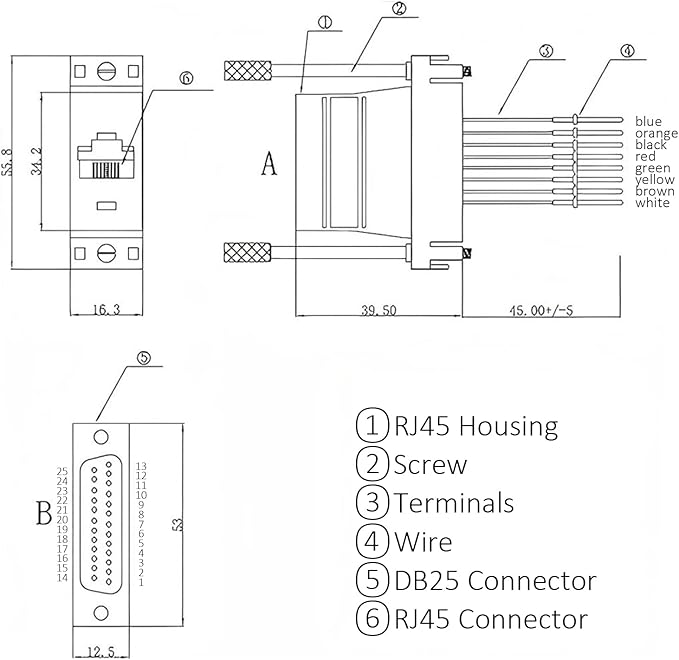

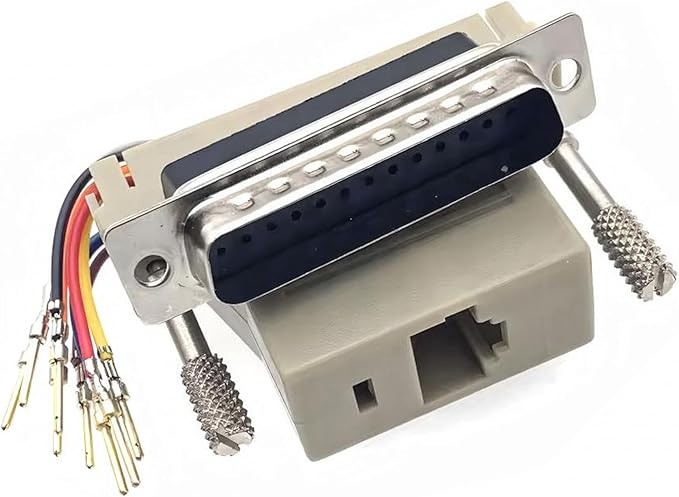

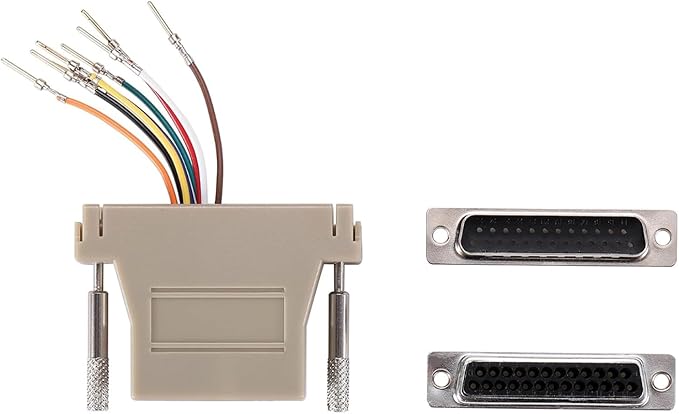

• DB25 male to RJ45 modular adapter can convert DB25 to RJ45 sockets (female), allowing you to establish a connection between devices with different interfaces.
• RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, 8-White.

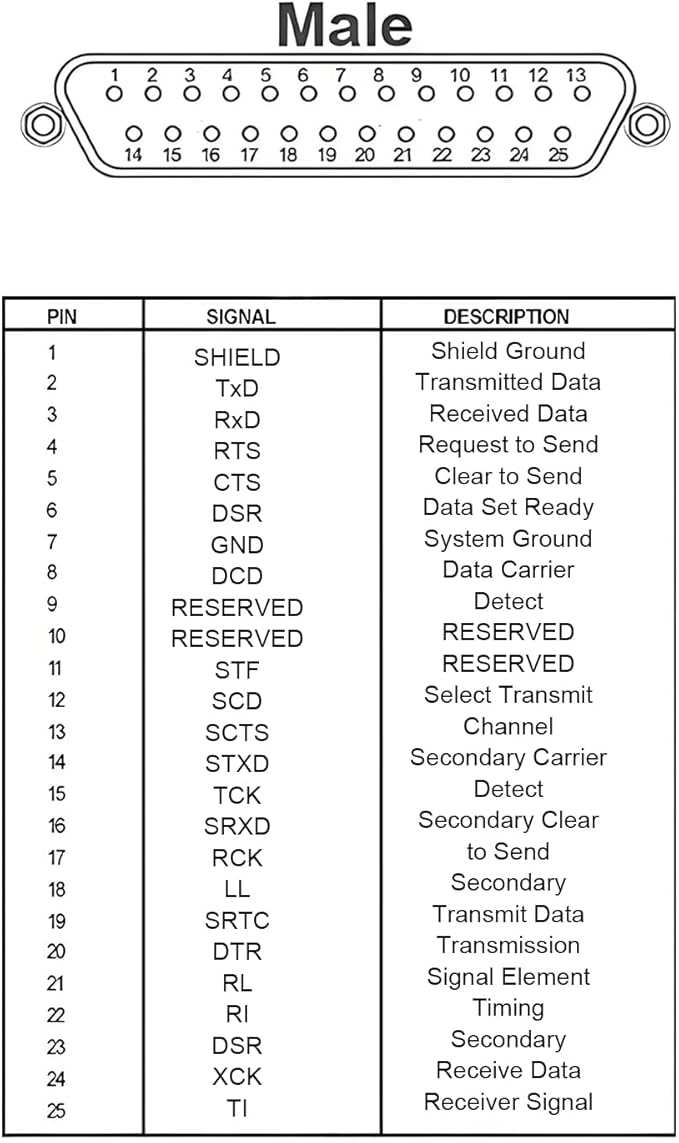

• DB25 Pin Definition: 1.SHIELD(Shield Ground); 2.TxD(Transmitted Data); 3.RxD(Received Data); 4. RTS(Request to Send); 5. CTS(Clear to Send); 6.DSR(Data Set Ready); 7.GND(System Ground); 8.DCD(Data Carrier Detect); 9.RESERVED; 10.RESERVED; 11.STF(Select Transmit Channel); 12.SCD(Secondary Carrier Detect); 13.SCTS(Secondary Clear to Send); 14.STXD(Secondary Transmit Data); 15.TCK(Transmission Signal Element Timing); 16.SRXD(Secondary Receive Data); 17.RCK(Receiver Signal Element Timing); 18.LL(Local Loop Control; 19.SRTC(Secondary Request to Send); 20.DTR(Data Terminal Ready); 21.RL(Remote Loop Control); 22.RI(Ring Indicator); 23.DSR(Data Signal Rate Selector); 24.XCK; 25.TI.
• Easy to Use: Plug and play design for a straightforward setup without the need for driver.

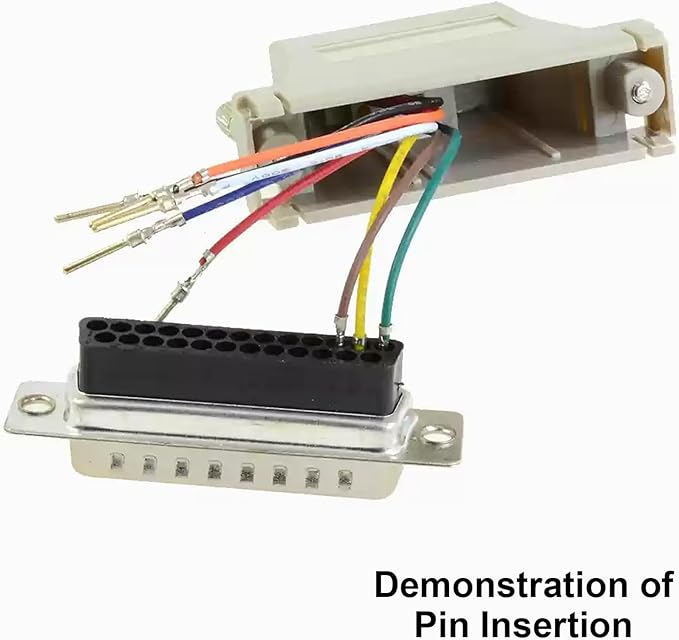

• Widely Application: You can customize the configuration pins to meet your needs. The lead wire is a "flying wire" that provides you with more flexibility when inserting pins. This connector is often used in scenarios where legacy serial devices need to be connected to a network infrastructure using Ethernet technologies.

Overview

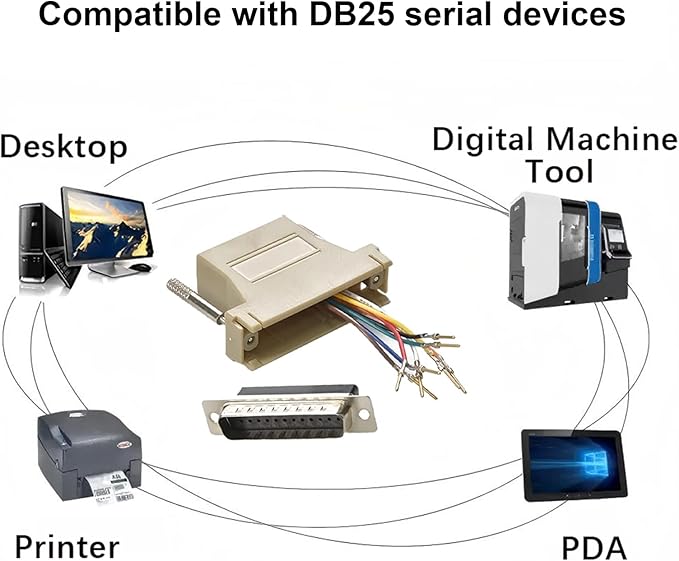

• Compatible Devices : computer and tax control machine, digital camera,PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation computer and tax control machine, digital camera,PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation
• Connector Type : DB25 to RJ45
• Brand : Willwewon
• Item Weight : 0.5 Pounds

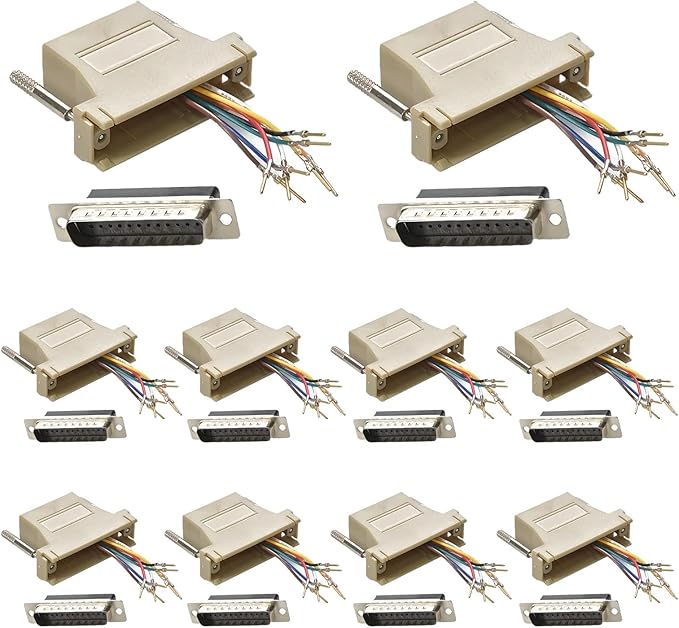

• Number of Items : 10
